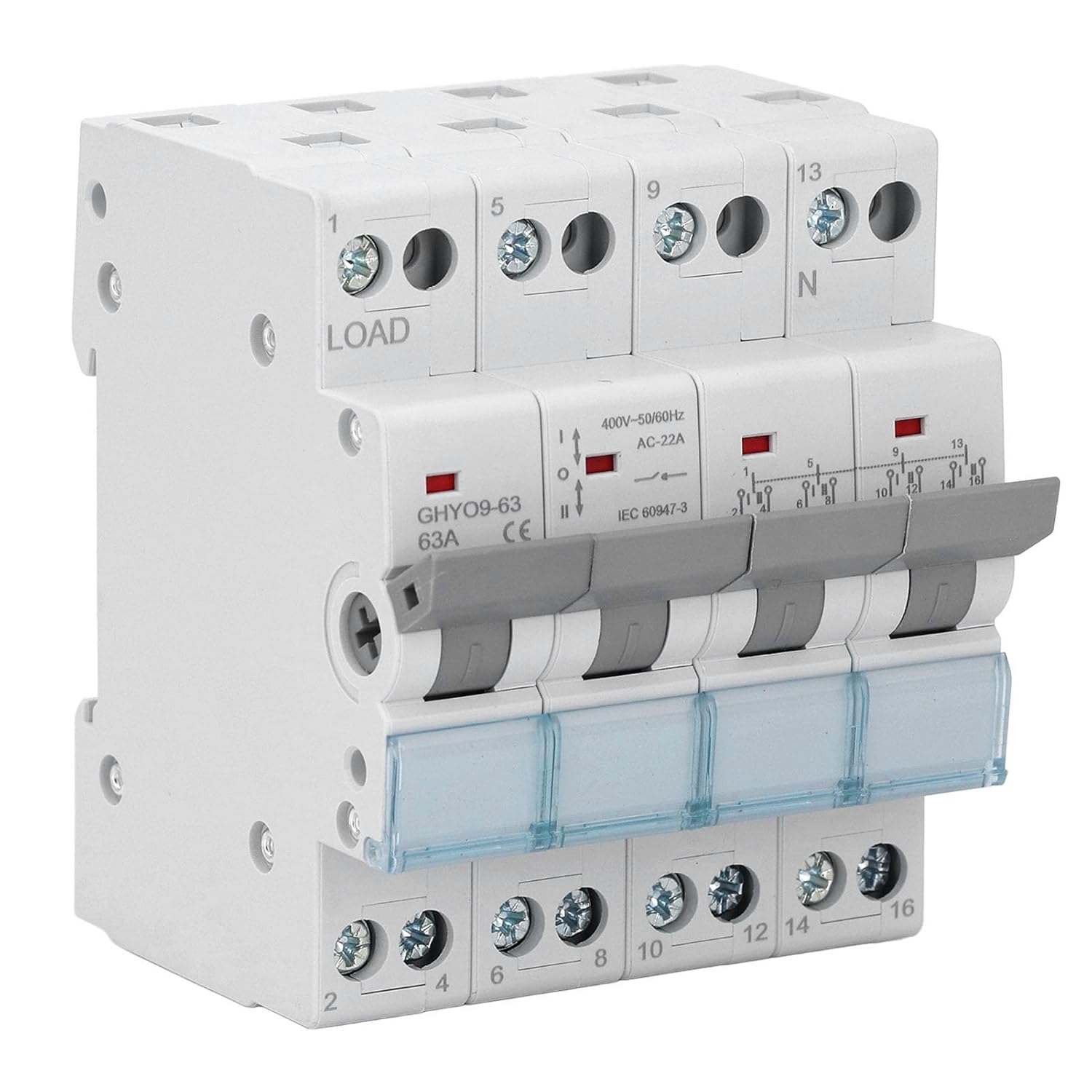

Power Manual Transfer Switch 4P 63A DIN Rail Backup Power Changeover Interlock Circuit Breaker for RVs Homes Generators

Specification: Item Type: Power Manual Transfer Switch Material: PP Flame Retardant Rated Current: 63A Rated Frequency: 50 60Hz Number of Poles: 4P Indicator: 1-0-2 (1: Main Power On, 0: Off, 2: Standby Power On) Indicator Window: 1: Red, 0: Green, 2: Yellow (Customizable) Short Circuit Current: 1200A Mechanical Life: 10000 Cycles IP Rating: IP20 Working Temperature: -5℃-50℃ Cable Size: Maximum 10mm² Installation: DIN35mm Rail How to Use: The purpose of the manual transfer switch is to manually switch the power source to a backup power source. The most common application is to transfer power from the backup power source to the load in the event of a mains power failure. When installed correctly, the manual transfer switch can provide a convenient way to transfer the load to the backup power source in the event of a failure in another power source. PackageList: 1 x Power Manual Transfer Switch

• [ Power Manual Transfer Switch] Enables users to manually switch between power sources, allowing to select backup power according to actual needs, ensuring continuous working of circuits or equipment. With a high voltage range of 1 to 600VAC.

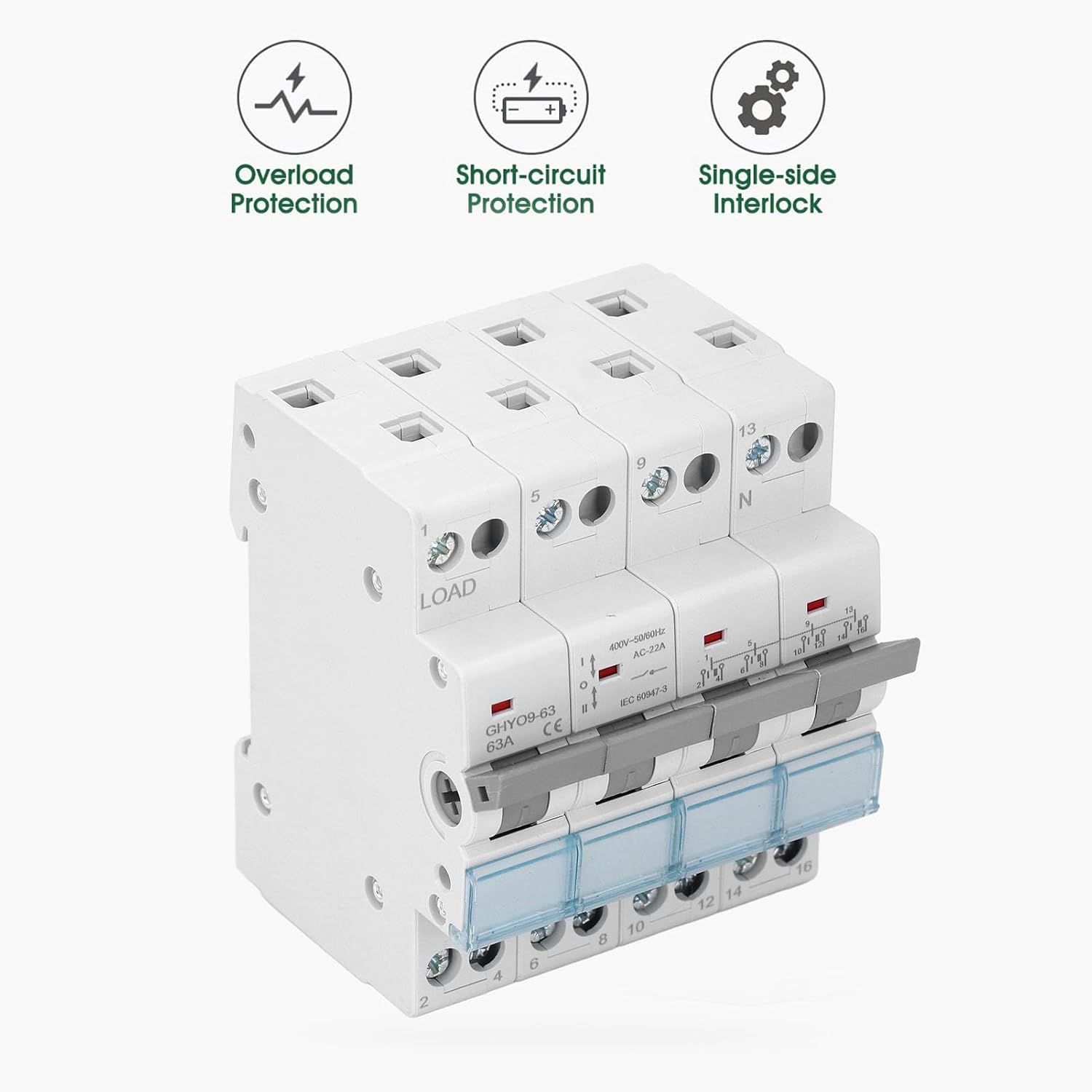

• [Multiple Guards] Equipped with overload and short circuit guards, the backup power changeover switch ensures manual switching of power circuits.
• [Three Color Indicator Features clear three color indicator window: red for tripped status, yellow for overload guard, and green for normal working, convenient for users to understand current work status.
• [Premium Materials] The manual transfer switch is constructed with silver alloy contacts and flame retardant PC housing, ensuring reliability and durability.
• [Versatile Applications] Suitable for RVs, homes, generators, or various power systems, the interlock circuit breaker can be easily installed on a 35mm DIN rail.
