Electric Linear Stage Actuator Travel Length 300mm Ballscrew 1605 Double Optical Axis Linear Rail Guide Slide Stage C7 with Nema23 Motor for DIY CNC Router Controller

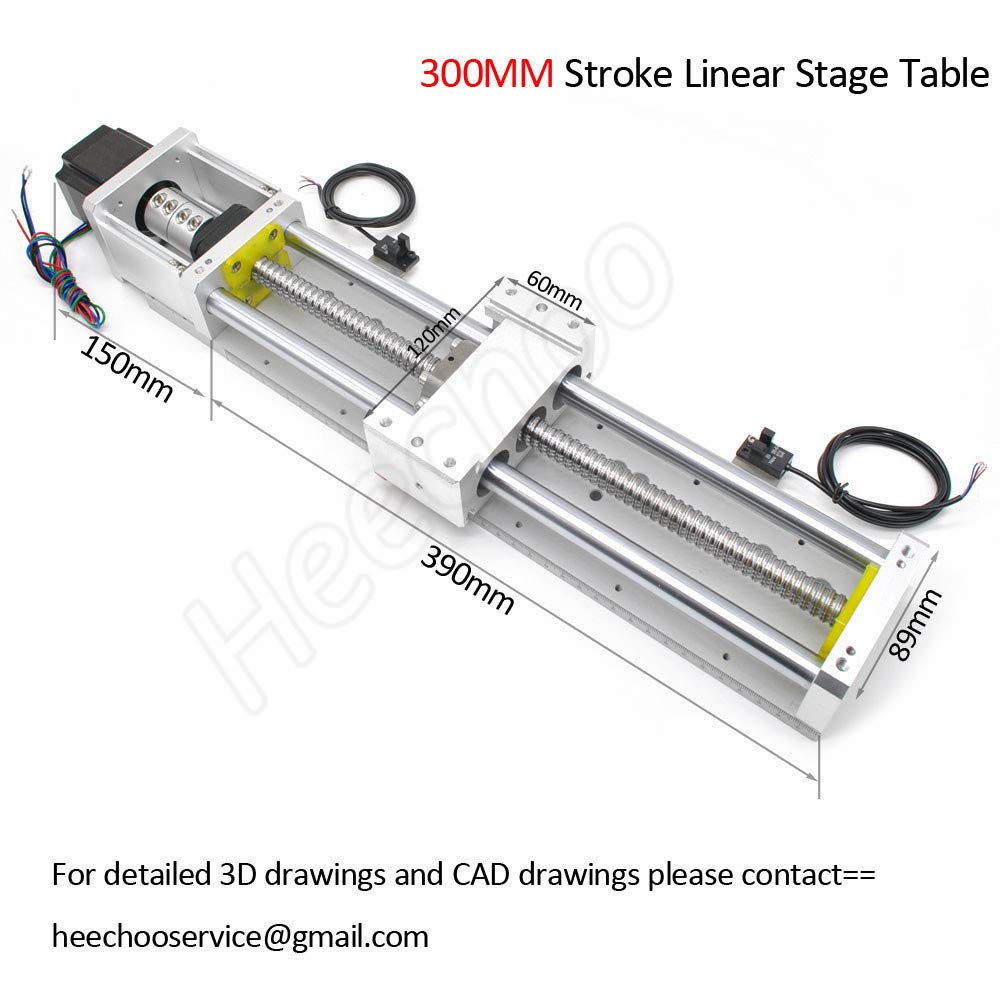

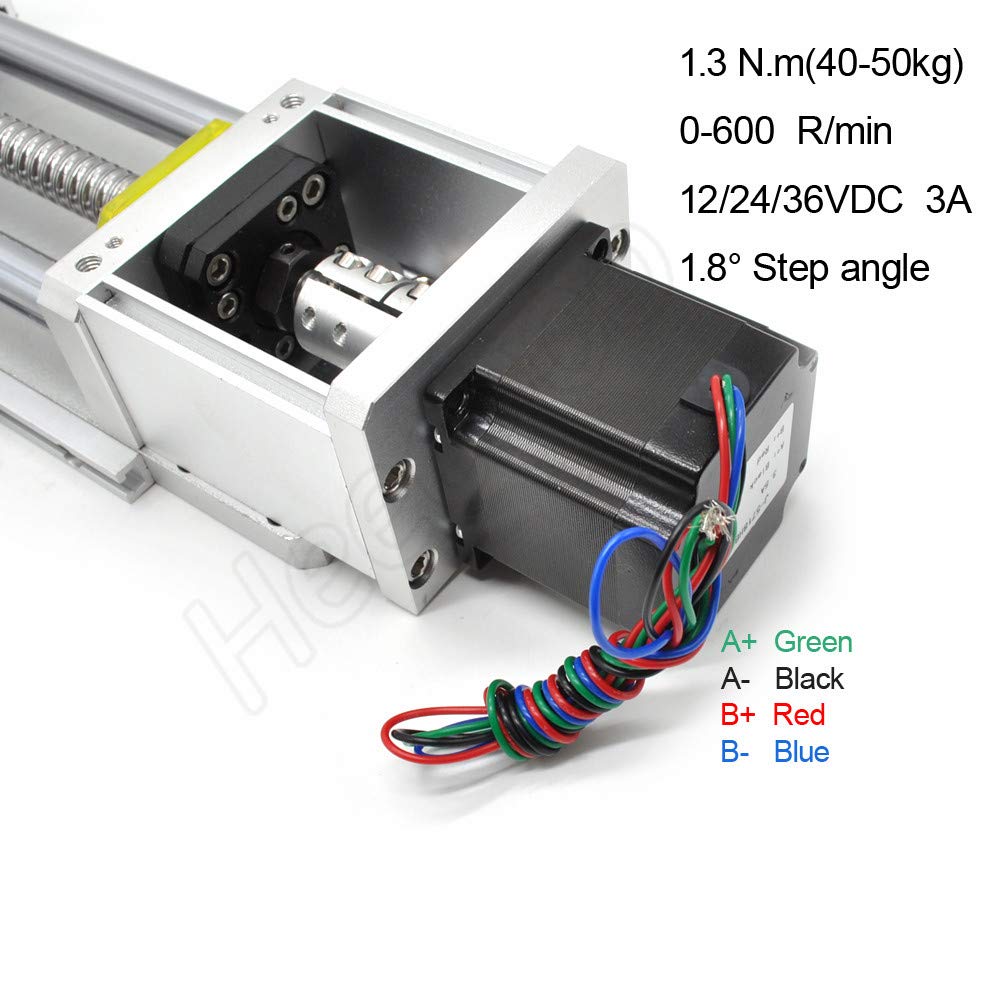

PACKAGE INCLUDED 1 x Electric Linear Stage slider Table 2 x EE-SX674 NPN Micro Photoelectric Switch 1 x 1.3N.m Stepper motor We have 3D drawings and CAD drawings.Please contact ([email protected]) for STP files BALLSCREW FEATURES Stroke--300 MM / Total length L2--389 MM Horizontal load(max)--35kg Vertical load(max)--10kg Product weight--4.2 kg PARAMETERS 1. Aluminum Profile (wide* high): 89x11mm 2. Front panel height :89mm, rear plate height: 61mm 3.Dual Micro Photoelectric Switch can be installed in any position on the side, used to provide the controller with the position information of the slide, with a millisecond response speed. 4. Professional screw support is installed before and after to improve the linear actuator's high life and accuracy. 5. Ball screw type: 1605 (diameter 16mm, lead 5mm , 1610 screw / 1620 screw can be replaced.) 6. Ball screw accuracy: C7,Repeat positioning accuracy: ± 0.02mm 7. Material: Aviation Aluminum 6061,sandblasted on the surface 8. Can be equipped with electric: Nema34 stepper motor, 60 ST servo motor (customer needs different flexible configuration) 9.Install dust cover ,please search: ASIN：B07ZY4GBMS
