Dual Power Automatic Transfer Switch 3P 100A 220V PC Type Electrical Selector Switches 50/60Hz Mini ATS Auto/Manual Transfer Switches for Generator Uninterrupted Power Supply Matched Device
4.2 (35 items)
Limited Time SaleUS$23.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210751728 | Release Date | 2026/04/02 | List Price | US$15.60 | Model Number | 210751728 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The ATS is specially designed for household orbit-type installation and specially used in PZ30 power distribution box.Can ensure the continuirty, reliability, and safety of power supply.Use this ATS for a Home electrical installation is a good choice,In case of sudden failure or power failure of common power supply, it will be automatically switched to the standby power supply through the dual Transfer switch (the standby power supply can also be powered by the generator under small load), so that the equipment can still operate normally.
- 【Product Introduction】This product is named "Automatic Transfer Switch",which also called ATS.This ATS can work perfectly with generators,It has the function of sending a self starting signal to the generator.ATS can bring convenience to life and eliminate the trouble of power outages.Make continuous power supply, uninterrupted power supply.

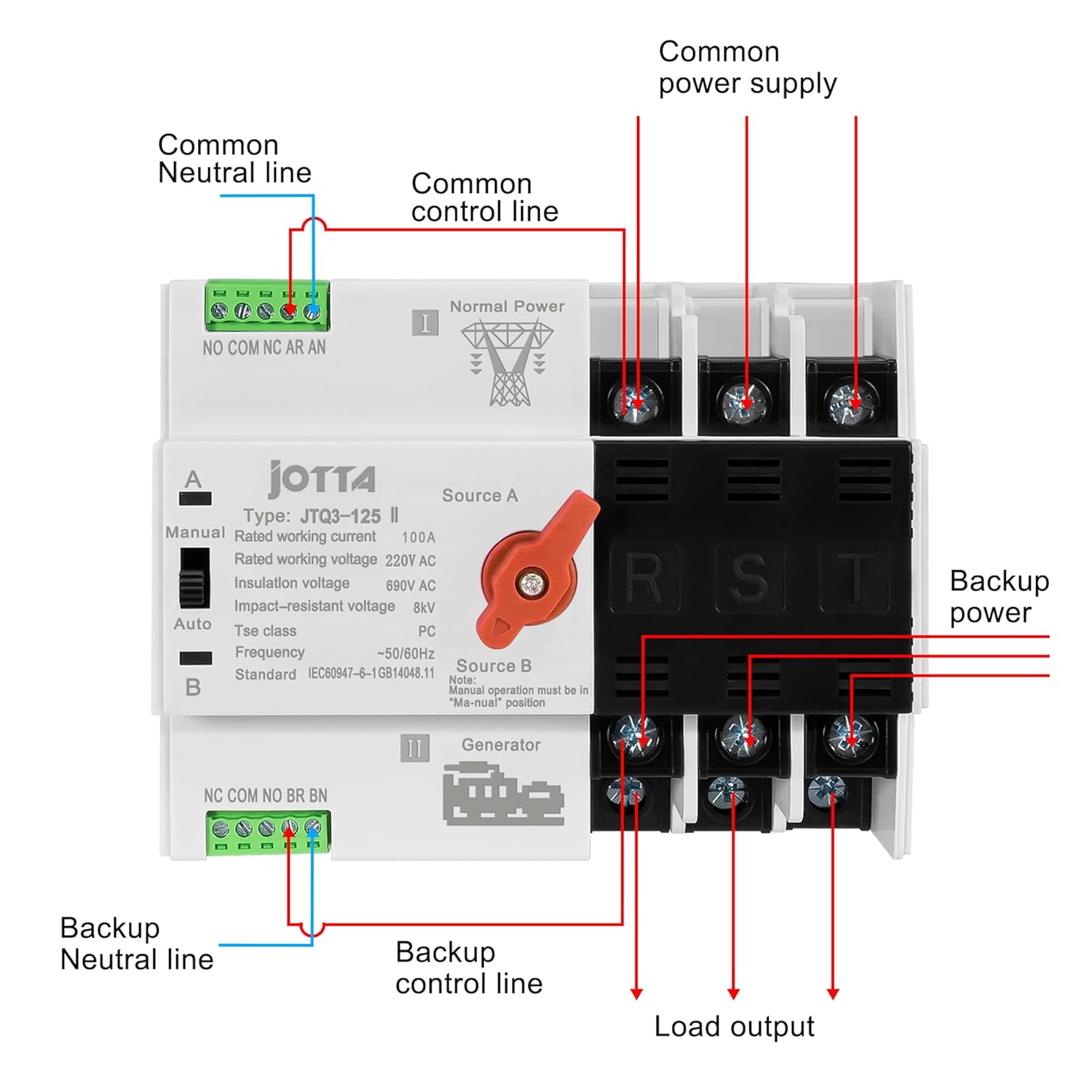

- 【Working Principle】You can connect city power as normal power,and connect generator as backup power.When city power is off,the ATS will transfer to generator automatically.When city power is back, ATS will return to city power from generator,its priority power supply is normal power side.Normal power can be city power 1 , backup power can be generator or city power 2. This model please do not use PV inverter as backup power.
- 【Product Parameters】This ATS working current is 6-100A,working voltage is 220V ,50/60Hz.Transfer speed is 50ms.When voltage lower than 165V, it will transfer to another side power supply,if voltage over 240V,there is a risk of burning out. (PV Type with a over-under voltage protection)
- 【Woking Mode】This product called automatic transfer switch, it can work by 2 modes:Auto and Manual. If you want it to work automatically, please switch the button to "Auto", if you want to opearate it by hand, please switch the button to "Manual".Woking status is ON-ON, which means normal power on or backup power on.
- 【Widely Used】Automatic transfer switch is suitable for situations where power outages cannot be sustained,can be used in household,shopping malls, hospitals, companies, factories,etc.Easy to install,din rail mounted and its small size suitable for PZ30 distribution box.
| UPC | 743829371851 |
|---|---|
| Color | 3P 100A 220V |
| Model | W2R |
| Wattage | 22 KW |
| Terminal | Screw |
| Brand Name | JOTTA |
| Unit Count | 1.0 Count |
| Switch Type | Transfer Switch |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Manufacturer | JOTTA |
| Material Type | Plastic |
| Mounting Type | DIN Rail Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 100 Amps |
| Operation Mode | ON-ON |
| Item Dimensions | 5.91 x 3.94 x 3.94 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 220 Volts (AC) |
| Specification Met | CE |
| Included Components | automatic transfer switch,4pcs wires,manual |
| Number of Positions | 2 |
| Connectivity Protocol | Din |
| Upper Temperature Rating | 35 Degrees Celsius |
| International Protection Rating | IP00 |
