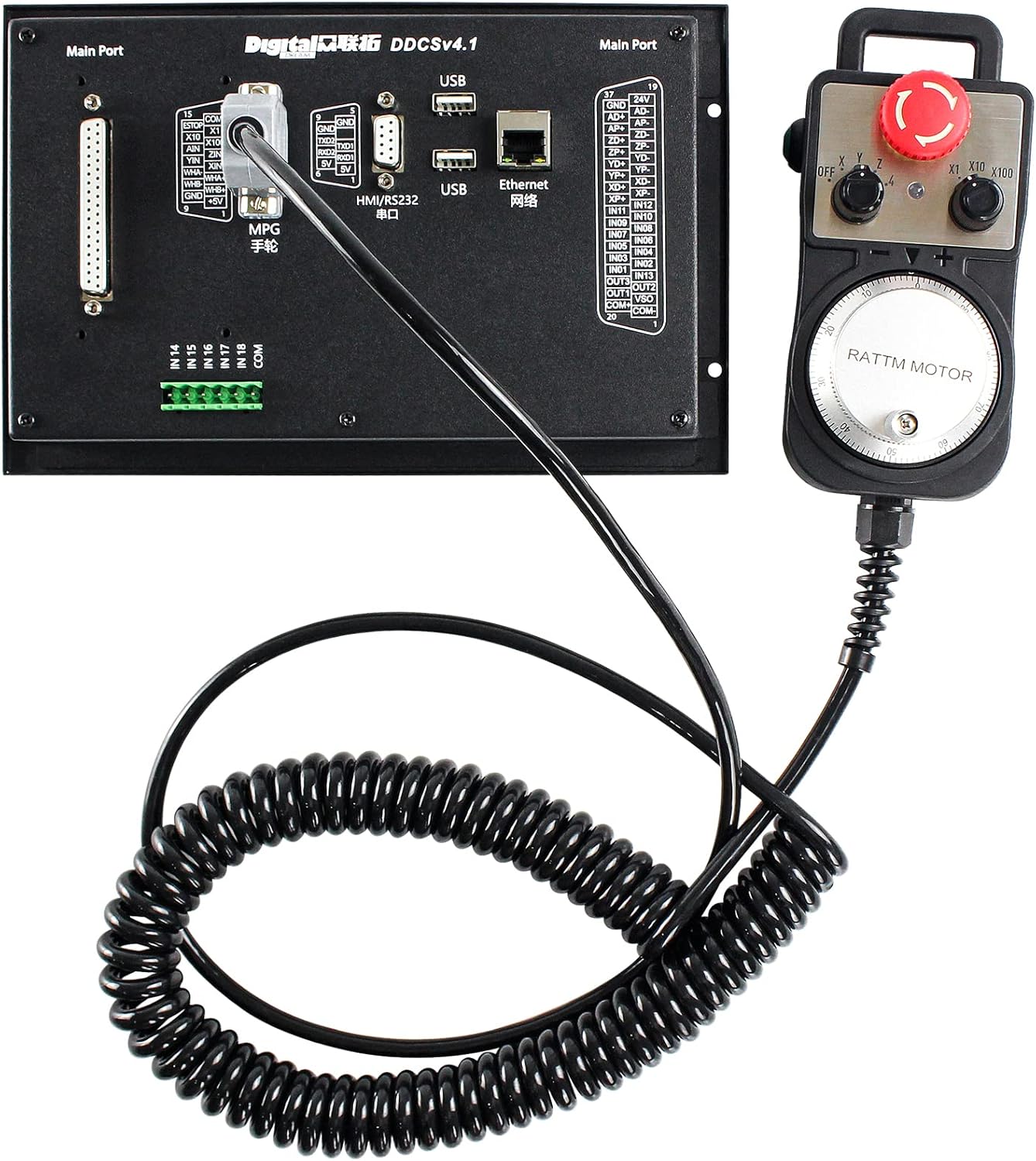

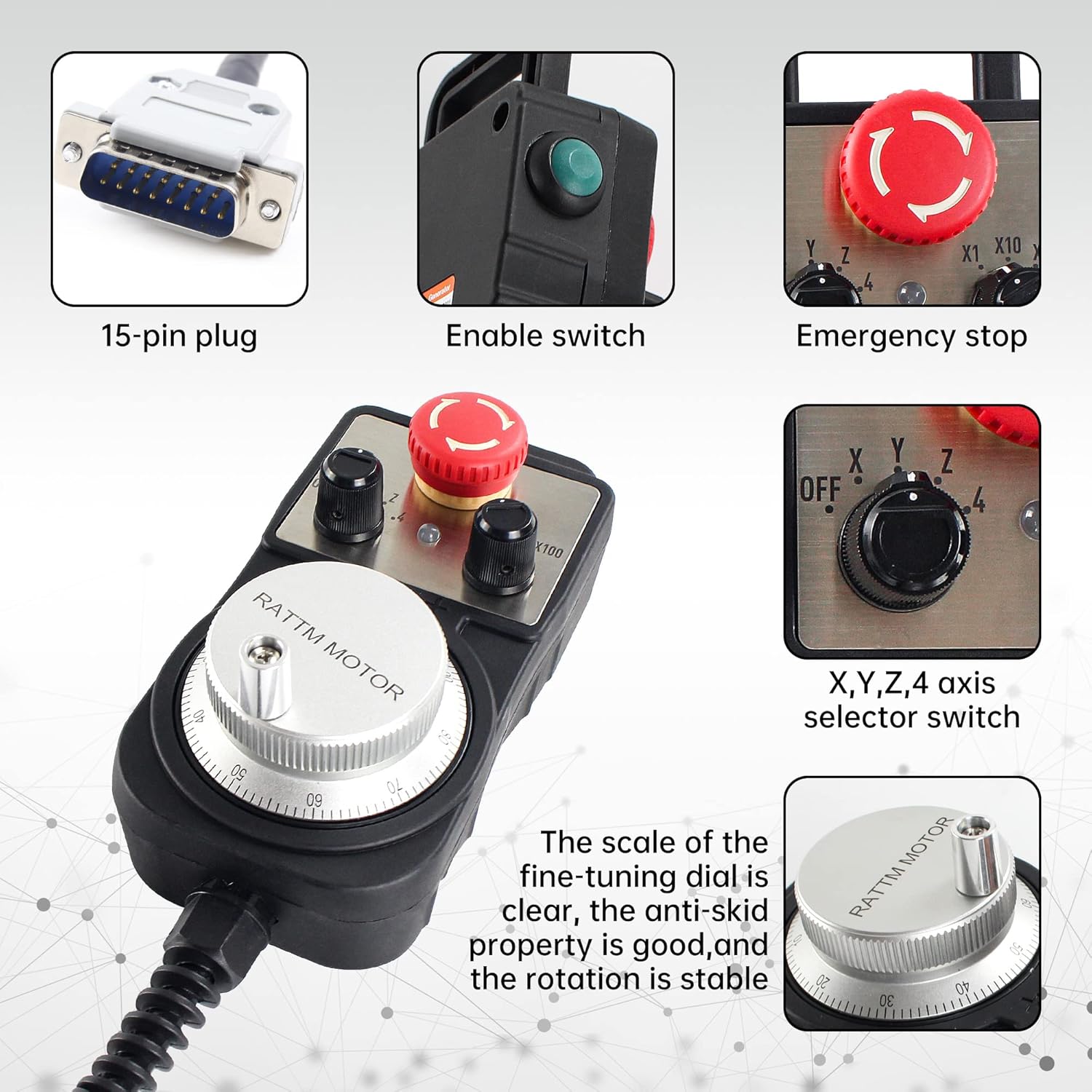

CNCTOPBAOS 4 Axis 500KHz CNC Offline Controller DDCSV4.1,Stand Alone System Motion Controller PLC,Slave Stepper Servo Motor Control+MPG Handwheel for CNC Router,Lathe,Engraving Milling Machine
4.6 (121 items)
Limited Time SaleUS$209.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210095597 | Release Date | 2026/04/02 | List Price | US$139.60 | Model Number | 210095597 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

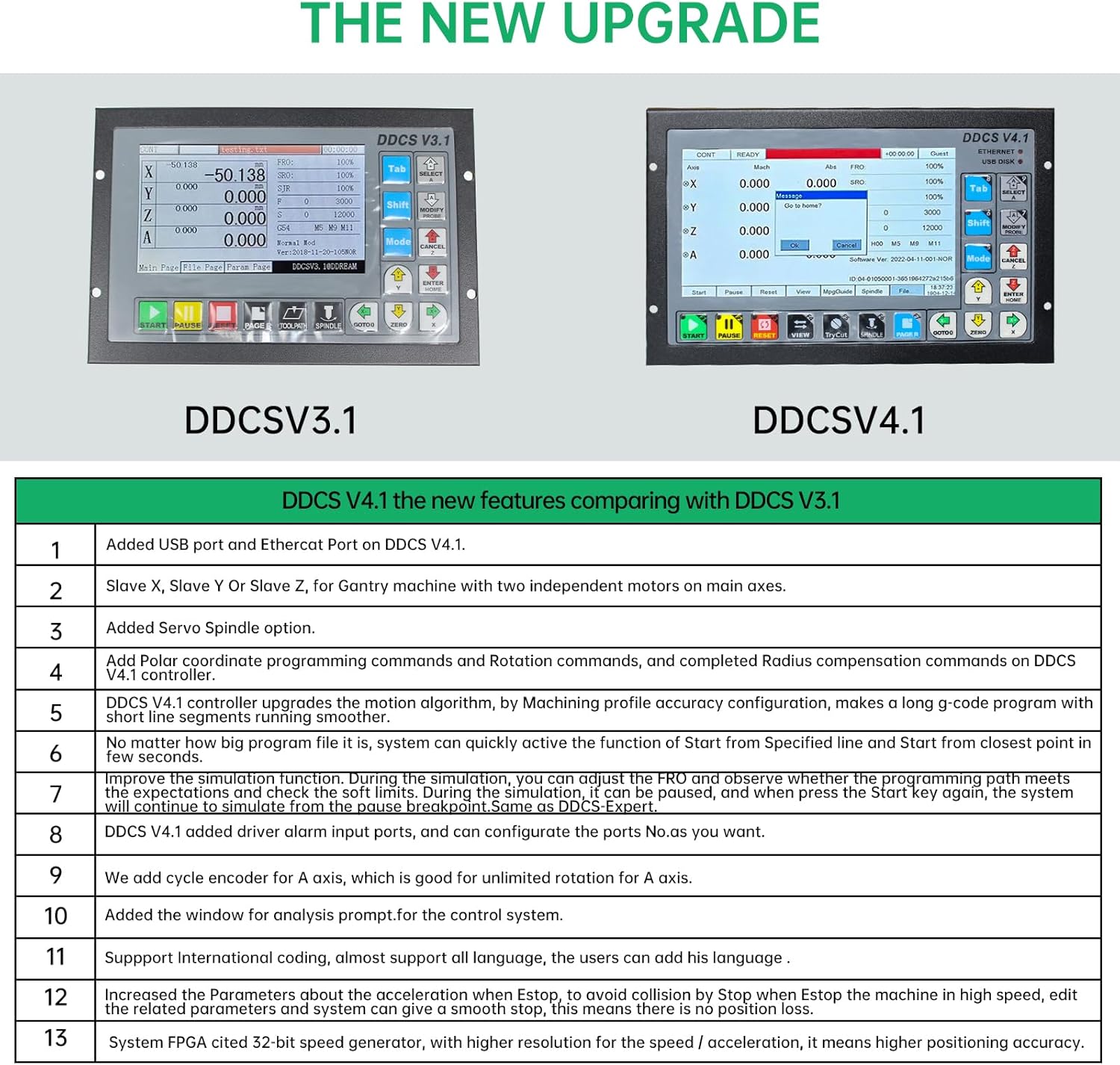

- Model Number: DDCS V4.1 ; 7 inches TFT screen, resolution ratio: 1024x600 ,17 operation keys;Difffferential Mode and Double Pulse Mode output signal for optional, Maximum interpolation pulse output frequency is 500Khz/Axis, 2-4 Axis linear interpolation, any 2 axis circular interpolation
- Feature: ARM9 main control chip,FPGA core algorithm chip;18 photoelectric isolated digital inputs,3 photoelectric isolated digital outputs. The spindle can be confifigurated as Analog spindle 0-10V and also servo spindle
- Slave function: Slave X, Slave Y Or Slave Z, for Gantry machine with two independent motors on main axis
- Power requirements: The Power Supply for IO Port is 24VDC,minimum current is 0.5A, the Power Supply for Control ler system is also 24VDC,minimum current is 0.5A. Controller needs both power to work properly
- Support G code file: USB flash disk support for G code file input; Can transfer the files by Ethernet communication between the computer and DDCS V4.1 controller; No size limited of the G-code file
| Color | black |
|---|---|
| Voltage | 24 Volts (DC) |
| Brand Name | CNCTOPBAOS |
| Display Type | LCD |
| Manufacturer | Changzhou Rattm Motor Co.,Ltd |
| Material Type | Copper |
| Included Components | No |
| Operating Temperature | 20 Degrees Celsius |
