4"/5"/6" Universal Indexing Rotary Table for Milling Machine, Vertical & Horizontal, with Tailstock & Dividing Plates, 1:40 Reduction Ratio, Precision Machining Tool

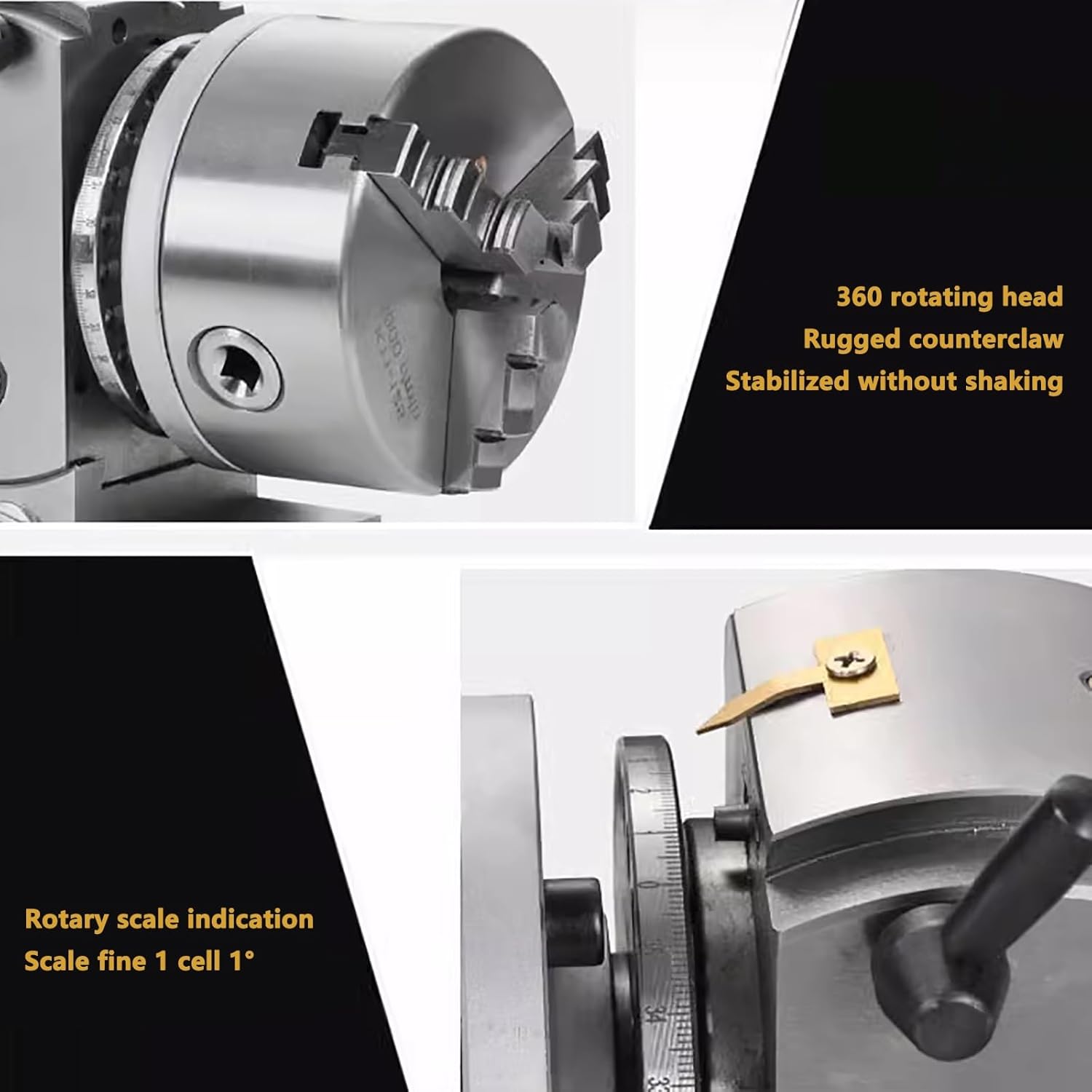

The indexing head is an essential accessory for milling machines, designed to enhance your machining capabilities for both metal and wood mold processing. Crafted from durable cast iron, this indexing head promises long-lasting performance, making it a reliable choice for both professional and hobbyist machinists. Versatile in use, our indexing head allows for horizontal and vertical applications, providing you with the convenience needed to tackle a variety of projects. It includes a comprehensive set of accessories that simplify machining operations, making it easier to achieve precision results. With the ability to divide your workpiece into equal parts, this indexing head utilizes an indexing scale ring, vernier, positioning pin, indexing disk, and exchange gear. This functionality allows you to accurately set angles and divide circumferences into any desired sections. Whether you’re machining grooves, spur gears, helical spur gears, or helical cams, you can employ various cutting tools to achieve the desired results. **Product Specifications:** - Center Height: 100mm (3.9in) or 130mm (5.1in) - Chuck Diameter Options: 100mm (3.9in), 125mm (5in), 160mm (6.3in) - Chuck Type: 3-jaw chuck - Clamping Range: 2-80mm (0.07-3.1in), 2-110mm (0.07-4.3in), 3-145mm (0.1-5.7in) - Weight Options: 20kg (44lb), 22kg (48.5lb), 29kg (64lb) **Package Contents:** 1 x Indexing Head with all necessary accessories. Please note that sizes are measured manually and may have slight variations. Due to different screen displays, colors may vary slightly. Should you have any questions or need assistance with the product, feel free to contact us. We are dedicated to ensuring your satisfaction and will respond within 24 hours.

• Interchangeable Index Plates: The Universal Indexing Head features a Direct Index Plate and an Interchangeable Index Plate on the Headstock, along with Two Additional Plates with Varying Hole Counts. These Index Plates ensure precise distance between cuts, allowing for versatile and accurate machining in your projects. Ideal for enhancing your woodworking and metalworking tasks.
• Long-Life Indexing Head: Our Rotary Table, crafted from durable FC30 Cast Iron, offers exceptional Wear Resistance with a High-Hardness Surface that reduces Scratches and Abrasion. Designed for precision and longevity, this Rotary Table is the perfect addition to your machining setup for reliable performance in various applications.
• The Milling Machine Rotary Table features a user-friendly Handwheel for precise measurements, clearly marked for easy reading. Its Intuitive Operation allows for controlled adjustments, ensuring accuracy with every rotation. The Tiltable Indexing Head can be adjusted from 10° below horizontal to 90° vertical, accommodating various Material Sizes for versatile machining applications.
• Enhance Your Milling Experience: Featuring a 1:40 Gear Ratio, our 24-Hole Direct Indexing Head allows for precise 2, 3, 4, 6, 8, 12, and 24 Divisions. Perfect for Small Milling Machines, it boosts your Milling Capacity. The included Tailstock offers robust support for longer Metal Bars, ensuring a stable and efficient working environment.
• Versatile Application: Ideal for Milling Machines, Grinding Machines, Drilling Machines, and Planing Machines. This Indexing Head features a thoughtful structural design and dependable quality, making it suitable for efficient slitting on Milling Machines and other specialized equipment. Enhance your machining capabilities with this reliable tool.
