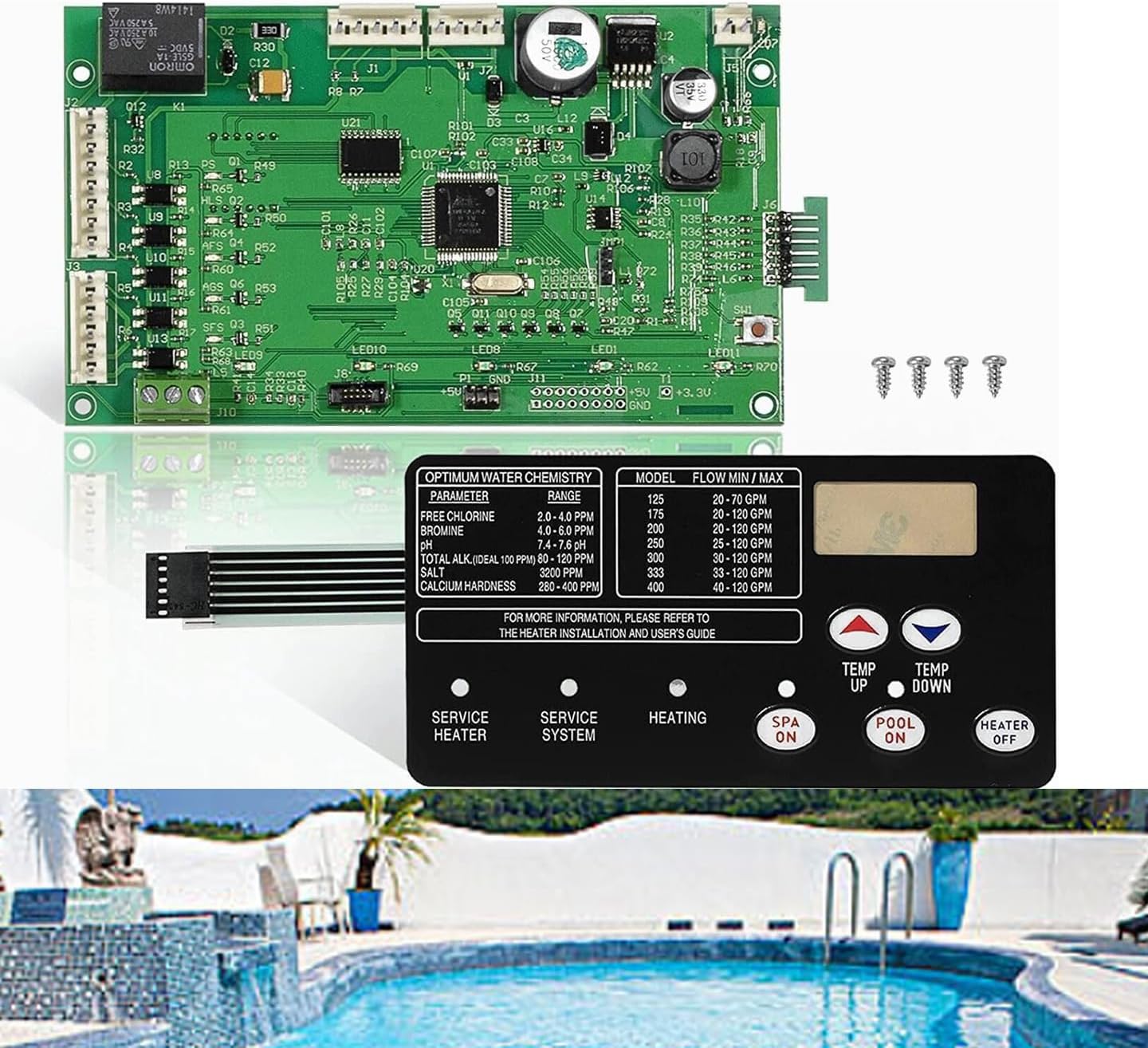

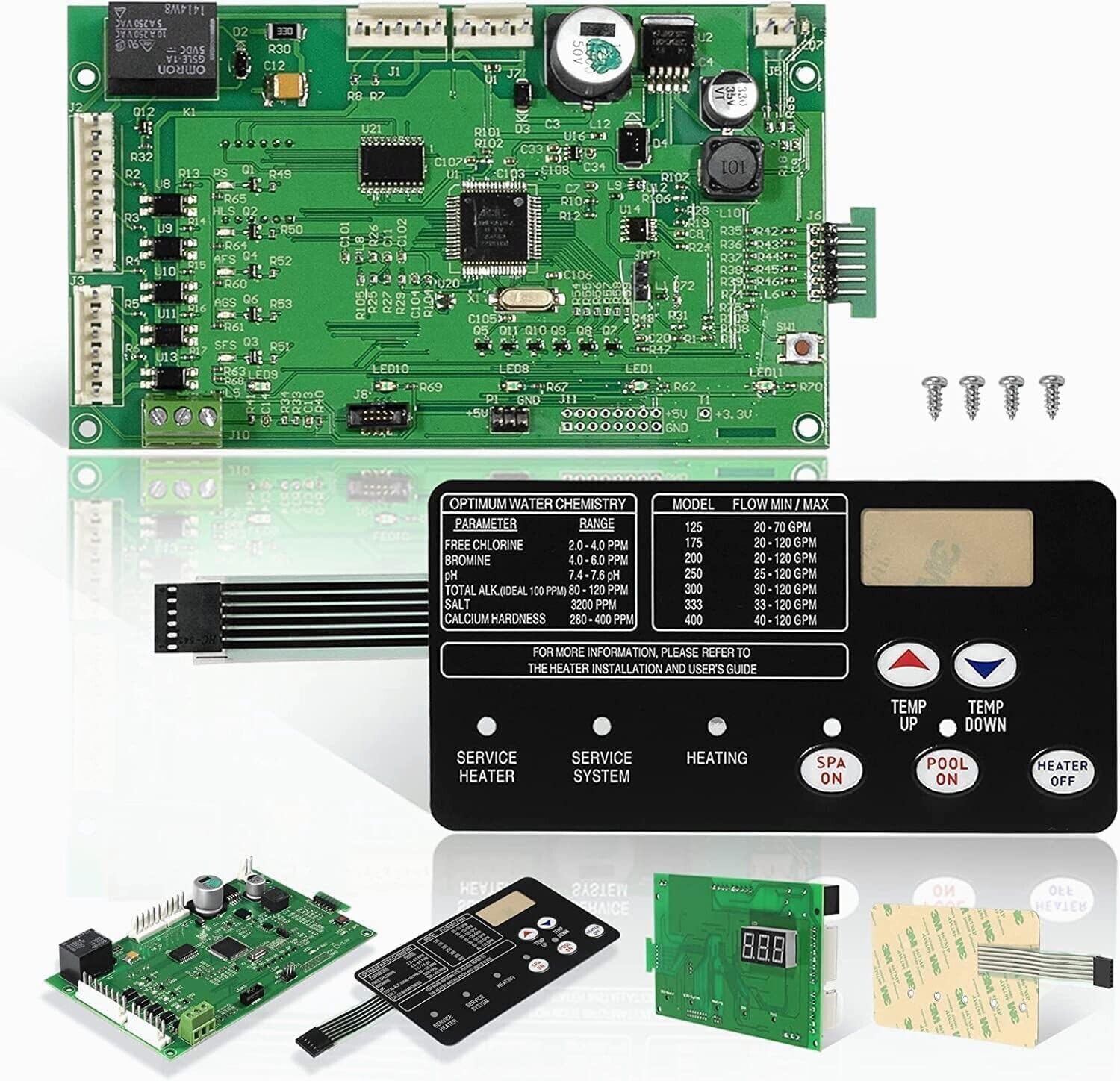

42002-0007S, 461105 Replacement Control Board, 472610Z Switch Pad for Pentair Mastertemp Sta-Rite Max-E-Therm Natural Gas Pentair NA and LP Series Pool/Spa Heater

Manifold Oring Kit: The purpose of this oring set is to ensure that the water traveling through the heater manifold does not leak through the points at which the manifold meets.Thermal Regulator Kit: Designed to trip at 120 F. Kit Includes: 1x Thermal Regulator, 1x Locking Clip, 1x Heavy-Duty Plug with OringBypass Valve: Designed to work with 460730, 460732, 460734, 460736, 460805, 460806, SR200NA. SR333NA, SR400NA. SR400HD. This bypass valve will work on all models of the Mastertemp and Max E Therm

• Replaces Following Part Numbers; 42002-0007S & Set includes the 472610Z Switch Pad For Pentair 461105
• Compatible With: Pentair Mastertemp 400 parts, SR333NA, Mastertemp 300, SR200NA, Mastertemp 200 and Pentair Mastertemp 125 Low Nox Pool Heater. This includes all HD heaters as well.
• Begin by removing the old circuit board by shutting down all power and opening the top of the heater tohave access to the old board. Unplug the membrane pad from the board and remove the wire connectors connected to the old board.Unscrew the 4 screws holding the board in place.This will allow you to take the old board completely out.
• Screw the board back in and plug the membrane pad into the connection that accepts the ribbon cable. Reconnect all of the wire connections and close out your master temp or max e therm heater.
• After-sales Service：We provide 1 year guarantee. No need to worry about problems in the project. Please don't hesitate to contact us if there is any question, we will reply within 24 hours and help solve the problem.
